Universal Run & Brake LED Backrest Light

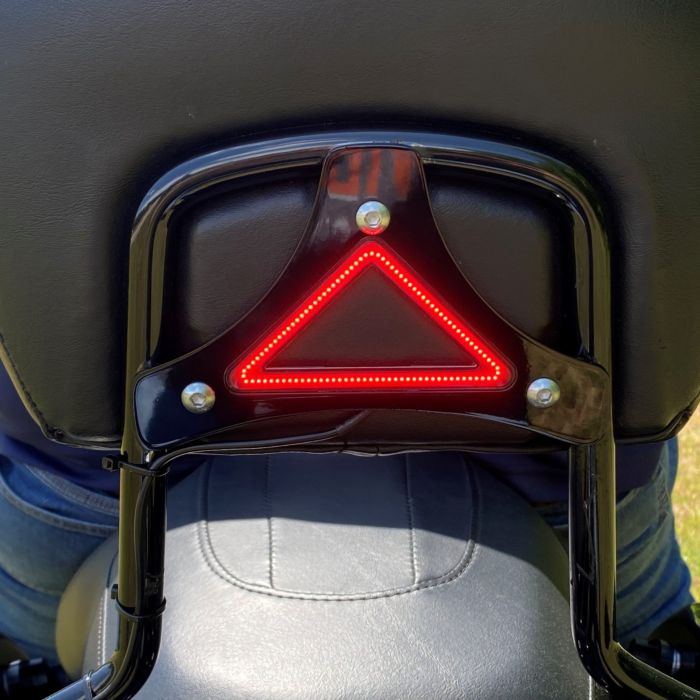

Custom Dynamics® LED Backrest offers 100 chip-on-board LEDs embedded into a metal bracket for plug and play installation on Harley-Davidson® sissy bars and passenger back rests. LEDs provide both running light and brake light functions for added visibility and safety on Harley-Davidson® sissy bars and passenger back rests on 12VDC negative ground systems with 3 wire hook up.
Warning: Cancer & Reproductive Harm — www.p65warnings.ca.gov
Details & Fitment
Dual intensity LED Backrest Light contains 100 chip-on-board LEDs on either a chrome or gloss back bracket. Plug and play adapter harness is included for simple installation to add an eye-catching rear running light & brake light. In-line quick disconnect built in for easy removal of backrest.
Unit replaces OEM part number 52565-94 to use with Harley-Davidson® sissy bars and passenger back rests on 12VDC negative ground systems with 3 wire hook up.
Install with a Magic Strobes Brake Light Flasher (sold separately) for additional safety & visibility!
LED Motorcycle Backrest Light also available in additional plug and play fitments.
Installation InstructionsView Product Installation Instructions
12VDC negative ground systems with 3 wire hook up.
Replaces passenger backrest mounting bracket only, must already have sissy bar & back rest pad.
- 3 WIRE HOOK UP
- CHIP-ON-BOARD LED TECHNOLOGY
- DUAL INTENSITY RUN & BRAKE
- REPLACES OEM 52565-94
- IN-LINE QUICK DISCONNECT
- CHROME OR BLACK FINISH
- USES 1/4-20 X 1-3/8 IN. BUTTON HEAD, HEX SOCKET
- BOTTOM 2 HOLES ARE 4-1/2" CENTER TO CENTER
- BOTTOM HOLES TO TOP HOLE LEFT AND RIGHT SIDE ARE 3-1/2" CENTER TO CENTER
- LIFETIME WARRANTY
